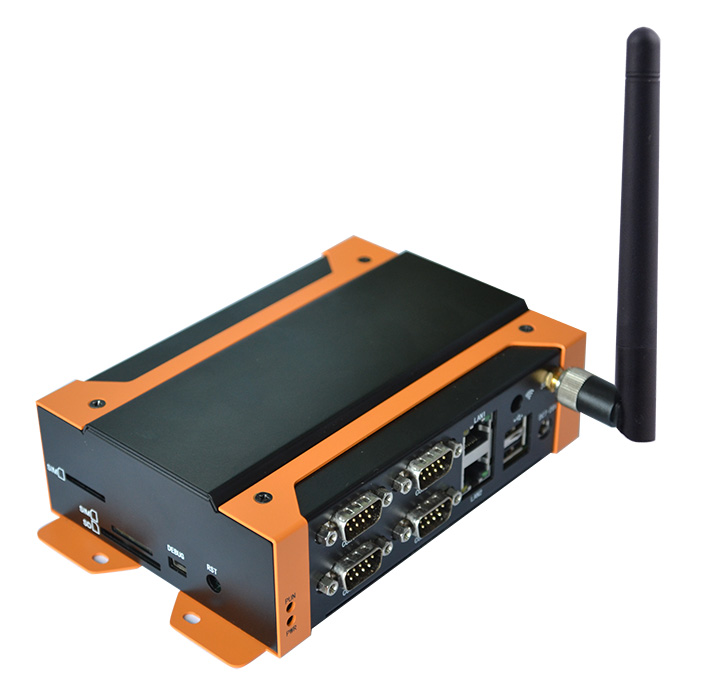

GEA-8401 嵌入式ARM工控機

-基于ATMEL Cortex A5 CPU

- 4×RS232/RS485，2×CAN，4×USB，2×RJ45

-支持2G,3G,4G功能擴展

-帶擴展接口，可擴展GPS,2G,3G,4G，WIFI等應用

- 8×16bit AD

產品型錄

產品介紹
產品規格
檔案下載

-基于ATMEL Cortex A5 CPU

- 4×RS232/RS485，2×CAN，4×USB，2×RJ45

-支持2G,3G,4G功能擴展

-帶擴展接口，可擴展GPS,2G,3G,4G，WIFI等應用

- 8×16bit AD

功能		描述
處理器系統	CPU	ARM Cortex-A5 SAMA5D3
內存	技術架構	512M，DDR2
網絡	控制器	CPU內部集成2個網絡
硬件監測	看門狗定時器	0~255秒，提供看門狗例程
存儲	SSD	EMMC 4/8/16GB,NAND FLASH與EMMC可選
存儲	SD	1路Micro SD座
串口	COM0	DEBUG口
	COM1-COM4	3線制RS232，TX/RX支持TVS保護,485跳線可選,3線制RS232,CPU內部引出，TX/RX支持TVS保護，
	COM5	RS232
USB	2.0 HOST	2路
	2.0 HOST	1路 MINI PCIE接口，集成USB 信號，支持2G/3G/4G通訊卡
	OTG	1路
顯示	TTL LCD	CPU集成，適合給小尺寸LCD應用
顯示	觸摸屏	4線電阻觸摸屏，采用I2C總線TSC2007IPW觸摸控制方案
擴展接口	GPIO	盡可能多引出來
	AD	8路，CPU自帶
	CAN	2*CAN總線
	SPI	2路SPI接口
	PWM	2路PWM輸出
	I2C	1路I2C接口
	SDIO	1路
音頻	接口	MIC/耳機
音頻	功放	2W@8歐姆功放輸出
功能按鍵	KEYPAD	擴展上、下、左、右方向按鍵，確定、返回功能鍵
RTC時鐘		CR2302可充電電池供電，a) 可設定的系統RTC，精度要求：誤差小于±3秒/月
電源	電源類型	DC 12V輸入，支持電源反向及過壓保護
	電源類型	電源接口5.08mm
	電源功耗	待實際板測量
工作環境	工作溫度	-20°C ~ 70°C
	存儲溫度	-40°C ~ 80°C
	工作濕度	0% ~ 90%相對濕度, 無凝露
	存儲濕度	0% ~ 90%相對濕度, 無凝露

Driver

日期	說明	版本	操作系統	下載

Manual

日期	說明	版本	操作系統	下載
