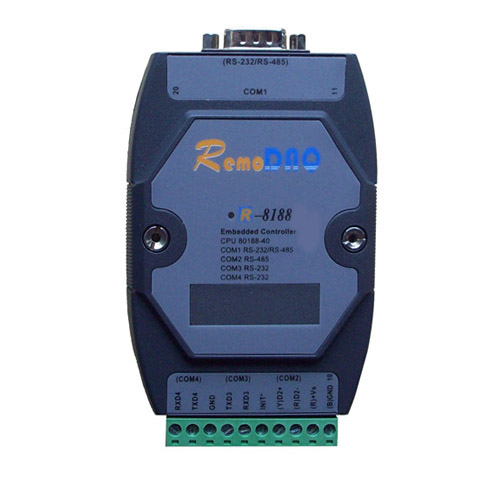

R-8188

RemoDAQ-8188系列可編程通訊控制器

主要特點

- AMD-80188-40Mhz低功耗CPU

- 內置RTC、SRAM、Flash Disk、miniBIOS、ROM DOS、看門狗，自動換向電路，7段LED顯示，擴展I/O總線等

- 4～8個串口，其中COM1為5線RS-232或2線RS-485口

- 工作溫度：-25～70℃

- 電源：+10～30VDC/2.0W

產品型錄

產品介紹
產品規格
檔案下載

RemoDAQ-8188系列產品是一款低價格、多用途、可編程的串口通訊控制和通訊協議轉換模塊，由于其核心硬件為AMD-80188-40Mhz CPU，軟件采用miniBIOS和ROM DOS，故此模塊可視為一臺IBM-PC兼容機，當然，此款機器僅包括CPU、內存、Flash Disk、4～8個RS-232/422/485串口等，而無軟驅、硬盤、鍵盤、鼠標接口，用戶可借助一臺普通的PC機開發程序，并通過PC機的串口與RemoDAQ-8188XD進行通訊或下載程序。

隨RemoDAQ-8188模塊提供了完備的開發程序包，用戶可利用BC和超級終端進行程序開發并進行單步調試。

模塊配有7段數碼顯示管，可在本地進行簡單數據顯示。

Remo-8188-M支持ModBus協議，帶有ModBus驅動的上位軟件可直接從此模塊獲取數據。

RemoDAQ-8188系列速查表：

模塊型號	R-8188 R-8188D	R-8188/5 R-8188/5D	R-8188/8 R-8188/8D	R-8188-M
CPU	80188-40M	80188-40M	80188-40M	80188-40M
SDRAM	256K	256K	256K	256K
Flash	512K	512K	512K	512K
嵌入式OS	ROM DOS	ROM DOS	ROM DOS	ROM DOS
EEPROM	2K	2K	2K	2K
COM口	1個RS-232/485，1個485，2個 RS-232	1個RS-232/485，1個485，3個 RS-232	1個RS-232/485，1個485，6個 RS-232	1個RS-232/485，1個485，2個 RS-232
通訊速率	從1200到115.2K	從1200到115.2K	從1200到115.2K	從1200到115.2K
通訊距離	RS-485：1200米	RS-485：1200米	RS-485：1200米	RS-485：1200米
7段數碼顯示	有（R-8188D）	有（R-8188/5D）	有（R-8188/8D）	有
數據流控制	有	有	有	有
看門狗定時器	有	有	有	有
隔離電壓	3000VDC	3000VDC	3000VDC	3000VDC
電源要求	10～30VDC	10～30VDC	10～30VDC	10～30VDC
工作溫度	-10～70℃	-10～70℃	-10～70℃	-10～70℃

訂貨信息：

- R-8188 4串口通訊控制器

- R-8188D 帶7段數碼顯示的R-8188

- R-8188/5 5串口通訊控制器

- R-8188/5D 帶7段數碼顯示的R-8188/5

- R-8188/8 8串口通訊控制器

- R-8188/8D 帶7段數碼顯示的R-8188/8

- R-8188-M 帶ModBus協議的4串口通訊控制器

- PWR-24/220 220V輸入/24V輸出，15W電源模塊

Driver

日期	說明	版本	操作系統	下載

Manual

日期	說明	版本	操作系統	下載
