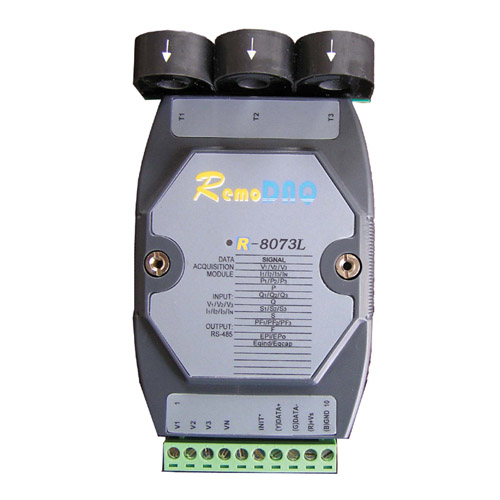

R-8073L

三相智能交流電量采集模塊

產品型錄

產品介紹
產品規格
檔案下載

三相智能交流電量采集模塊

規格	R-8073S
被測路數	三相電流電壓
測量內容	電流、電壓的真有效值，有用功率，有功電度
電壓量程	10～500V，可通過外加電壓互感器及設定電壓變比測量較高電壓
電流量程	基本量程0～5A，可通過外加電流互感器測量較大電流，可設電流變比
通信接口	RS-485
通訊協議	ASCII命令集及MODBUS\ASCII協議
采樣速率	交流采樣，4KHz/通道
通訊速率	300/600/1200/2400/4800/9600BPS
精度等級	電流、電壓0.2級，其他0.5級
供電電源	10～30VDC
功耗	1.5W

訂貨信息：

R-8073L/5：三相智能交流電量采集模塊，0~5A輸入

R-8073L/20：三相智能交流電量采集模塊，0~20A輸入

Driver

日期	說明	版本	操作系統	下載

Manual

日期	說明	版本	操作系統	下載
2015/02/11	用戶手冊 R-8073L			下載
