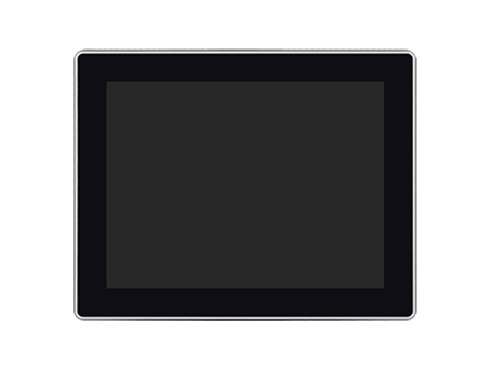

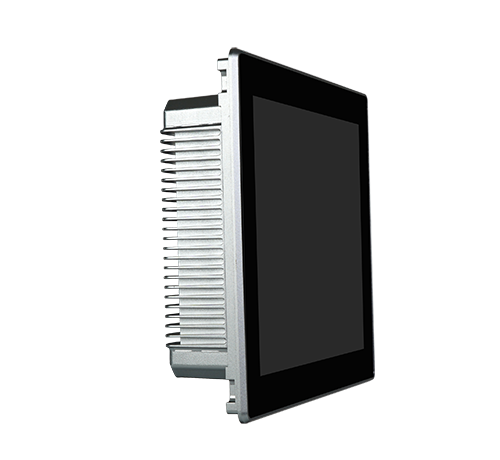

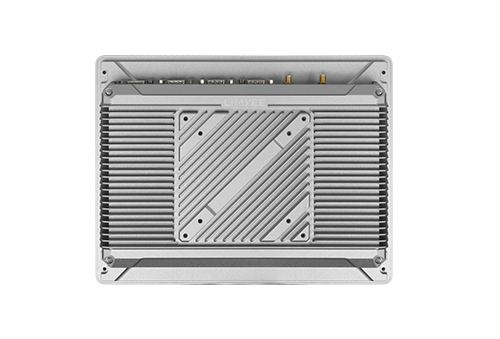

AHPC-1011

支持Intel® Bay Trail、Gemini lake、Elkhart Lake、6代 Sky Lake &7代Kaby Lake、8代 Whiskeylake &10代 Cometlake-U處理器

支持SO-DIMM 、支持M-SATA、 M.2 Sata、 M.2 NVME存儲

標配10.4 寸顯示屏，電阻式觸摸屏，支持雙顯

標配雙網口，部分配置支持Intel加密TPM2.0，支持8*GPIO

支持1*MINI-PCIE(for WIFI)、1*SIM，支持3G、4G、5G模塊

產品型錄

產品介紹
產品規格
檔案下載

AHPC-1011

支持Intel® Bay Trail、Gemini lake、Elkhart Lake、6代 Sky Lake &7代Kaby Lake、8代 Whiskeylake &10代 Cometlake-U處理器

支持SO-DIMM 、支持M-SATA、 M.2 Sata、 M.2 NVME存儲

標配10.4寸顯示屏，電阻式觸摸屏，支持雙顯

標配雙網口，部分配置支持Intel加密TPM2.0，支持8*GPIO

支持1*MINI-PCIE(for WIFI)、1*SIM，支持3G、4G、5G模塊

支持VESA支架安裝，壁掛式、桌面式安裝

9~24V寬壓供電，

整機無風扇設計

產品可應用于工業自動化、環境監測、風力發電、3D機器視覺檢測等行業

處理器	Baytrail	Gemini Lake	Elkhart Lake	Sky Lake（6-7代）	Whiskey Lake（8-10代）
BIOS	AMI BIOS	AMI BIOS	AMI BIOS	AMI BIOS	AMI BIOS
芯片組	Intel® SOC	Intel® SOC	Intel® SOC	Intel® SOC	Intel® SOC
圖型顯示	Intel® HD Graphics核顯	Intel® UHD Graphics 600	Intel® Graphics核顯	Intel® HD Graphics核顯	Intel® HD Graphics核顯
網絡	Realtek RLT 8111H/8111G千兆網卡	Realtek RLT 8111H/8111G千兆網卡	2*Intel I226-V千兆網卡	2*Intel I211千兆網卡	Intel I219千兆網卡+ I211 千兆網卡
音效	Realtek ALC662HD	Realtek ALC662HD	Realtek ALC269HD	Realtek ALC662HD	Realtek ALC662HD
內存	DDR3L1333MHz 可支持到 8G	DDR4 2400MHz 可支持到16G	DDR4 3200MHz 可支持到16G	DDR4 2133 MHz 可支持到16G	DDR4 2400MHz 可支持到16G
硬盤	M-SATA 128G	M.2 2280 Sata 128GB	M.2 2280 NVME128GB	M-SATA 128G	M.2 2280 NVME128GB
功能	支持WiFi、藍牙、4G、看門狗，支持無盤啟動、網絡喚醒、上電開機	支持WiFi、藍牙、4G、看門狗，支持無盤啟動、網絡喚醒、上電開機	支持WiFi、藍牙、4G、看門狗，支持無盤啟動、網絡喚醒、上電開機	支持WiFi、藍牙、4G、看門狗，支持無盤啟動、網絡喚醒、上電開機	支持WiFi、藍牙、4G、看門狗，支持無盤啟動、網絡喚醒、上電開機

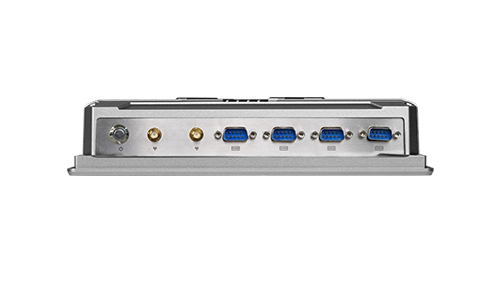

前I/O接口	1開關 2天線 4*COM	1開關 2天線 4*COM	1開關 2天線 4*COM	1開關 2天線 4*COM	1開關 2天線 4*COM
后I/O接口	1Audio接口 2LAN 接口 1USB2.0接口 1USB3.0接口 1HDMI接口 1VGA接口 1DC IN接口 4USB 接口 1*M3接地螺孔	1Audio接口 1DP接口 1HDMI接口 4USB3.2接口 2LAN 接口 1DC IN接口 4USB接口 1M3接地螺孔 1CMOS按鍵支持8GPIO	1Audio接口 1DP接口 1HDMI接口 1USB2.0接口 3USB3.1接口 2LAN 接口 1DC IN接口 4USB接口 1M3接地螺孔 1CMOS按鍵支持8*GPIO	1Audio接口 2LAN 接口 2USB3.0接口 1HDMI接口 1VGA接口 1DC IN接口 4USB接口 1M3接地螺孔	1Audio接口 1DP接口 1HDMI接口 4USB3.2接口 2LAN 接口 1DC IN接口 4USB接口 1M3接地螺孔 1CMOS按鍵支持8GPIO
電源	DC9V~24V寬壓輸入	DC12V-24V寬壓輸入	DC9V~24V寬壓輸入	DC12V-24V寬壓輸入	DC12V-24V寬壓輸入
操作系統	Windows 7 / Windows 10 / Linux
產品認證	CCC / CE / RoHs
顯示屏	10.4寸
觸摸屏	電阻式觸摸屏
分辯率	1024*768
散熱方式	無風扇
整機功耗	< 17W（屏3.2W）
整機尺寸	259x207x58mm
整機重量	< 2.8kg
機箱材質	鋁合金壓鑄
整體顏色	太空灰色
安裝方式	兼容嵌入式、壁掛式、桌面式
環境	工作溫度：-10℃～60 ℃ 貯存溫度：-20 ℃～70 ℃ 濕熱：40 ℃ 95%RH 面板防護等級：IP65
